Boot Axle Hanger 2 Hole Boot Axle Hanger Width:  5.81" Length:  5.81" Height:  2.35”

Front, Center or Rear Hanger One hole axle hanger Use with 1.75" wide spring Top of hanger to center of hole: 1.25" Total Height: 1-15/16" Interior Width between legs: 2" Hole Size: 9/16" Welding required Nobody wants to sit at home, missing...

Front, Center or Rear Hanger One hole axle hanger Use with 1.75" wide springs Top of hanger to center of hole:  2.25" Total Height: 2-15/16" Interior Width between Legs" 2" Hole Size: 9/16" Welding required Nobody wants to sit at home,...

Front, Center or Rear Hanger One hole axle hanger Use with 1.75" wide springs Top of hanger to center of hole: 3.25" Total Height: 3-15/16" Interior Width between legs: 2" Hole Size:  9/16" Welding required Nobody wants to sit at home,...

Front, Center or Rear Hanger One hole axle hanger Use with 1.75" wide spring Top of hanger to center of hole: 5.25" Total Height: 5-15/16" Interior Width between legs: 2" Hole Size:  9/16" Welding required Nobody wants to sit at home,...

Round Spindle Washer Inner Diameter: 1" Outer Diameter: 1-11/16"

D-Flat Spindle Washer Inner Diameter: 1" Outer Diameter: 1-11/16" Thickness: 1/8"

Includes Two Fold over Tabs for Locking the Spindle Nut to the Spindle Fits One Inch Diameter EZ Lube Spindles Can be used with most One Inch Spindle Castle Nuts

Replacement tandem axle AP kit Standard Bolts Kit includes shackle links, mounting hardware, and equalizers Long equalizers Shackle Size:  2.25" Equalizer Type: EQ-E1 Axle Spacing:  35" Kits includes the following: Equalizers:...

Replacement triple axle AP kit Use with 1-3/4" wide springs Standard bolts Kit includes shackle links, mounting hardware, and equalizers Shackle Size: 3.13" Equalizer Type:  EQ-104 and EQ0105 Axle Spacing:  33" Kit...

Shackle Assembly Qty: 2 Shackle Assembly Length: 3.13" Shackle Plate Qty: 2 Shackle Plate Length: 3.13" Shackle Bolt Qty: 2 Shackle Bolt Length: 2.87" Lock Nut Qty: 6 Lock Nut Thread: 7/16" -20 Hangers sold separately Does not include...

Replacement dust cap For 5,200-6,000-lb. axle capacities 2.45" outer diameter 1-1/2 " tall Use with lubed spindles Rubber plug not included Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn't...

Replacement rubber insert for trailer axle hub dust cap For 2,000-8,000-lb. axle capacities 1-1/2" outer diameter Fits 1-3/16" hole size Axle dust cap not included Nobody wants to sit at home, missing a fun weekend of camping, because their RV...

Replacement dust cap For 2,000-3,500-lb. axle capacities 1.988" outer diameter 1-3/8" tall Use with lubed spindles Rubber plug not included Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn't...

Axle capacity: 4,400 lbs. Fits axle tube size: 3" Length: 6-1/2" Thread end: 1/2"-20 Suggested nut #122079 Yellow zinc-plated finish resists rust and corrosion Since 1956, Lippert has been the go-to name in axles and chassis. Producing over...

Replacement dust cap For 5,200-6,000-lb. axle capacities 2.45" outer diameter 1-3/8" tall Shield bearings, grease, and other inner hub components from dust and contaminants. Replacement dust caps for standard axle hubs are identified by axle...

Axle capacity: 3,500 lbs. Fits axle tube size: 2-3/8" Length: 5-1/8" Thread end: 1/2"-20 Suggested nut #122079 Yellow zinc-plated finish resists rust and corrosion Since 1956, Lippert has been the go-to name in axles and chassis. Producing over...

Cotter Pin: 1.75" Long Typically used on axle rated 2k to 8k

Fits 1/2"-20 lug studs 60-degree cone design Includes one nut only

Self-Locking Nut: 3/8"-24 TPI

Type: Hex flange Thread end: 1/2"-20 Since 1956, Lippert has been the go-to name in axles and chassis. Producing over 5,000 axles daily, we've solidified our spot as the industry leader. Our genuine replacement parts set the standard for...

Replacement Spindle Nut For 3,500 to 8,000 lb axle capacities 6-slot castle nut 1"-14 threads Distance across Hex Nut: 1-1/2" Height:  9/16"

Self-stripping electrical pigtail connector contains a sealant which helps to protect against corrosion due to moisture. No wire stripping is required; simply insert wires and press down with a plier. Pigtail Connector with Sealant, ScotchLok Color:...

Grease Seal - 122087 Grease Seal (I.D.): 1.719" Grease Seal (O.D.): 2.561" For 3500 to 4400 lb axle capacities High Temperature Wheel Bearing Grease Sold Separately, Part No. 4055 Use with UHI series Hubs

Grease Seal - 122088 Grease Seal (I.D.): 2.25" Grease Seal (O.D.): 3-371" Width: 3/8" For 5200 to 8000 lb axle capacities High Temperature Wheel Bearing Grease Sold Separately, Part No. 4055

Bearing - L44649 Inner cone: Fits 2,000-lb. axle hubs Outer cone: Fits 2,000 to 3,500-lb. axle hubs Industry number: L44649 Pairs with bearing race L44610 Shaft diameter: 1-1/16"

Outer cone: Fits 5,200-lb. axle hubs Industry number: LM67048 Pairs with bearing race LM67010 Shaft diameter: 1-1/4" Since 1956, Lippert has been the go-to name in axles and chassis. Producing over 5,000 axles daily, we've solidified our spot as...

Outer cone: Fits 5,200 to 6,000-lb. axle hubs Industry number: 15123 Pairs with bearing race 15245 Shaft diameter: 1-1/4" Since 1956, Lippert has been the go-to name in axles and chassis. Producing over 5,000 axles daily, we've solidified our...

Inner cone: Fits 3,500 to 4,400-lb. axle hubs Industry number: L68149 Pairs with bearing race L68111 Shaft diameter: 1-3/8" Since 1956, Lippert has been the go-to name in axles and chassis. Producing over 5,000 axles daily, we've solidified our...

Shield bearings, grease, and other inner hub components from dust and contaminants. Replacement dust caps for standard axle hubs are identified by axle weight capacity, making it easy to find the right fit. Replacement dust cap For 2,000-3,500-lb...

Shoulder Bolt Shoulder length: 2.325" Overall length: 2.875" Thread size: 7/16-20 Body diameter: 9/16"

Type: Hex flange Thread end: 7/16"-20 Since 1956, Lippert has been the go-to name in axles and chassis. Producing over 5,000 axles daily, we've solidified our spot as the industry leader. Our genuine replacement parts set the standard for...

Allows for easy lubrication of wet bolt equalizers and lubricated axles Entry point for greasing various suspension components This item ships in a poly bag Direct Replacement for Super Lube Axle Spindles — Upgrade your RV's axle and...

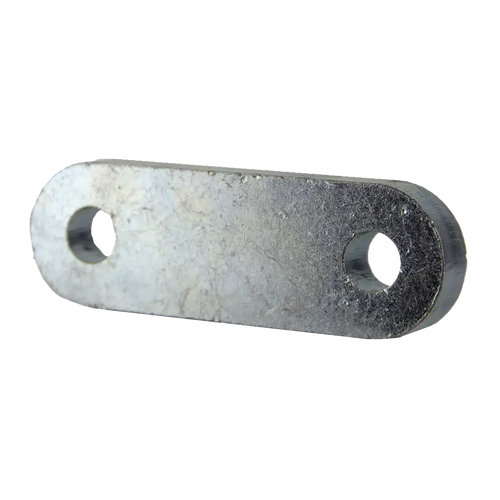

Shackle Strap Length: 2.25" (Measured from Center of Hole to Center of Hole) Width: 1-1/4" Bolt Hole Diameter: 9/16" Finish: Zinc Plated

Inner Race Inner race: Fits 5200 to 8000-lb. axle hubs Industry number: 25520 Pairs with bearing cone 25580 Shaft diameter: 1-3/4"

Outer race: Fits 5,200-lb. axle hubs Industry number: LM67010 Pairs with bearing cone LM67048 Shaft diameter: 1-1/4" Since 1956, Lippert has been the go-to name in axles and chassis. Producing over 5,000 axles daily, we've solidified our spot as...

Inner/Outer Race Outer race: Fits 3500 to 4400-lb. axle hubs Industry number: L68111 Pairs with bearing cone L68149 Shaft diameter: 1-3/8"   Since 1956, Lippert has been the go-to name in axles and chassis. Producing over 5,000 axles...

Inner/Outer Race Inner race: Fits 2,000-lb. axle hubs Outer race: Fits 2,000 to 3,500-lb. axle hubs Industry number: L44610 Pairs with bearing cone L44649 Shaft diameter: 1-1/16"

Replacement leaf spring for RV trailer Length: 24" Weight capacity: 1,750 lbs. Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help...

Replacement, shackle link assembly for RV suspension Strap Size: 2.25" Includes: (2) shoulder bolts and (1) shackle link plate Connects suspension springs and axle hangers Measured by width from center hole to center hole Nobody wants to sit at...

Replacement, heavy-duty shackle link for RV suspension Size: 2.25" Connects suspension springs and axle hangers Measured by width from center hole to center hole Heavy-duty versions available in both sizes and are typically used with wet bolts...

Comes with Nylon Bushings Industry reference: EQ-310 Equalizer Assembly for Double Eye Springs. This EQ is 2" taller than the standard, providing 1" taller frame height.

Outer Race Outer race: Fits 5200 to 6000-lb. axle hubs Industry number: 15245 Pairs with bearing cone 15123 Shaft diameter: 1-1/4"

Outer cone: Fits 7,000-lb. axle hubs Industry number: 14125A Pairs with bearing race 14276 Shaft diameter: 1-1/4" Since 1956, Lippert has been the go-to name in axles and chassis. Producing over 5,000 axles daily, we've solidified our spot as the...

Outer Race Outer race: Fits 7000-lb. axle hubs Industry number: 14276 Pairs with bearing cone 14125A Shaft diameter: 1-1/4"

Shield bearings, grease, and other inner hub components from dust and contaminants. Replacement dust caps for standard axle hubs are identified by axle weight capacity, making it easy to find the right fit. Replacement dust cap For 7,000-8000-lb...

Replacement dust cap For 7,000-8,000-lb. axle capacities 2.72" outer diameter 1-1/2" tall Use with lubed spindles Rubber plug not included Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn't...

Use with 2" wide Slipper Springs with 9/16" diameter eye Axle Spacing: 33-1/2" Overall Length: 11" Overall Height: 3.5" Center Bolt: 7/8" Distance from Center bolt to Spring Eye: 4-5/8" Finish: Powder-coat Black This item ships in a kraft...

Equalizer Reference: EQ-1304 Equalizer Bolt Qty: 2 Equalizer Bolt Length: 4.7" Shackle Bolt Qty: 4 Shackle Bolt Length: 3.5" Keeper Bolt Qty: 4 Keeper Bolt Length: 3.25" Equalizer Nut Qty: 2 Equalizer Nut Thread: 7/8"-9 Lock Nut Qty: 4 Lock...

Outer cone: Fits 8,000-lb. axle hubs Industry number: 02475 Pairs with bearing race 02420 Shaft diameter: 1-1/4" Since 1956, Lippert has been the go-to name in axles and chassis. Producing over 5,000 axles daily, we've solidified our spot as the...

Replacement triple axle AP kit Standard bolts Kit includes shackle links, mounting hardware, and equalizers Long equalizers Lippert replacement trailer axle AP kits will help get your trailer suspension back to operating in no time. Our...

Replacement 28.5" slipper leaf spring 26.88" eye-to-slipper length 1,000 lb. weight capacity Leaf count: 4 2" wide Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should...

Shackle Strap Length: 3.13" (Measured from Center of Hole to Center of Hole) Width: 1-1/4" Bolt Hole Diameter: 9/16" Finish: Zinc Plated

Replacement, shackle link assembly for RV suspension Strap Size: 3.13" Includes: (2) shoulder bolts and (1) shackle link plate Connects suspension springs and axle hangers Measured by width from center hole to center hole Heavy-duty versions...

Replacement leaf spring for RV trailer Length: 24" Weight capacity: 2,500 lbs. Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help...

Brake hub only (full assembly not included) Lippert genuine replacement part Axle rating: 4,400 lbs. Wheel size: 14.5" to 16.5" Bolt pattern: 6 on 5.5" Stud size: 1/2" 1-year warranty If you need to replace your brake hub, go with a trusted...

Replacement shoe and lining kit is compatible with Lippert® electric brake assemblies. Available for 10" x 2.25" or 12" x 2" assemblies Pads are fully bonded to shoes for long life and more braking torque Nobody wants to sit at home, missing a...

Replacement shoe and lining kit is compatible with Lippert® electric brake assemblies. Available for 10" x 2.25" or 12" x 2" assemblies Pads are fully bonded to shoes for long life and more braking torque Nobody wants to sit at home, missing a...

Replacement 24" slipper leaf spring 26.88" eye-to-slipper length 2,000 lb. weight capacity Leaf count: 4 2" wide Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should...

Axle capacity: 7,000 lbs. Bolt pattern: 8 on 6-1/2" Wheel size: 16" Stud size: 1/2" Lippert genuine replacement part Does not allow for a trailer braking system Races and wheel studs come pre-installed Accepts press-in dust caps Durable, cast...

Grease Seal - 139514 Grease Seal (I.D.): 1.50" Grease Seal (O.D.): 1.986" High Temperature Wheel Bearing Grease Sold Separately, Part No. 4055 Use with BT4-49, BT5-49, 58-49R, and 513-49R Hubs

Type: Hex flange Thread end: 3/8"-24 Since 1956, Lippert has been the go-to name in axles and chassis. Producing over 5,000 axles daily, we've solidified our spot as the industry leader. Our genuine replacement parts set the standard for...

Axle capacity: 3,500 lbs. Bolt pattern: 5 on 5" Wheel size: 13" - 15" Stud size: 1/2" Lippert genuine replacement part Does not allow for a trailer braking system Races and wheel studs come pre-installed Accepts press-in dust caps Durable, cast...

Axle capacity: 6,000 lbs. Bolt pattern: 6 on 5-1/2" Wheel size: 15" - 16" Stud size: 1/2" Lippert genuine replacement part Does not allow for a trailer braking system Races and wheel studs come pre-installed Accepts press-in dust caps Durable,...

Axle capacity: 7,000 lbs. Bolt pattern: 8 on 6-1/2" Wheel size: 16" Stud size: 1/2" Lippert genuine replacement part Does not allow for a trailer braking system Races and wheel studs come pre-installed Accepts press-in dust caps Durable, cast...

Axle capacity: 4,400 lbs. Bolt pattern: 6 on 5-1/2" Wheel size: 14" - 15" Stud size: 1/2" Lippert genuine replacement part Does not allow for a trailer braking system Races and wheel studs come pre-installed Accepts press-in dust caps Durable,...

Dramatically reduces fore-to-aft trailer movement, otherwise known as chucking Helps eliminate trailer and cargo damage caused by road shock and vibration Delivers a ride as smooth as torsion axles at a fraction of the cost Includes pre-installed...

Lippert genuine replacement part Bearing cones, seal and grease come installed Axle rating: 8,000 lbs. Wheel size: 16" to 17" Bolt pattern: 8 on 6.5" Stud size: 5/8" 1-year warranty If you need to replace your brake hub, go with a trusted name and get...

Replacement, heavy-duty shackle link for RV suspension Size: 3.13" Thickness: 1/2" Connects suspension springs and axle hangers Measured by width from center hole to center hole Finish: Zinc Chromate Nobody wants to sit at home, missing a fun...

Idler hub only (full assembly not included) Lippert™ genuine replacement part Axle rating: 2,200 lbs. Wheel size: 13" to 15" Bolt pattern: 5 on 4.5" Hub flange diameter: 6.5" Stud size: 1/2" 1-year warranty If you need to replace your...

Outer race: Fits 8,000-lb. axle hubs Industry number: 02420 Pairs with bearing cone 02475 Shaft diameter: 1-1/4" Since 1956, Lippert has been the go-to name in axles and chassis. Producing over 5,000 axles daily, we've solidified our spot as the...

Type: Wheel bolt Diameter: 0.689" knurl Shoulder length: 2-5/16" Thread end: 9/16"-18 Suggested nut #134581 Since 1956, Lippert has been the go-to name in axles and chassis. Producing over 5,000 axles daily, we've solidified our spot as the...

Trailer Axle Wheel Bolt Diameter of Thread: 5/8"-18 Shoulder Length:  2-3/4" Diameter of Knurl: .689"

Round Spindle Washer Replacement round spindle washer Inside diameter: 1.06" Outside diameter: 2" Thickness: 1/8"

Allows enough movement between axles to keep ride smooth and load undisturbed Industry number: EQ-126 Number of axles: 3 Spring width: 1-3/4" Axle spacing: 35" Type: 2 Width: 8-11/16" Height: 2-1/2" For use with double-eye springs Includes...
